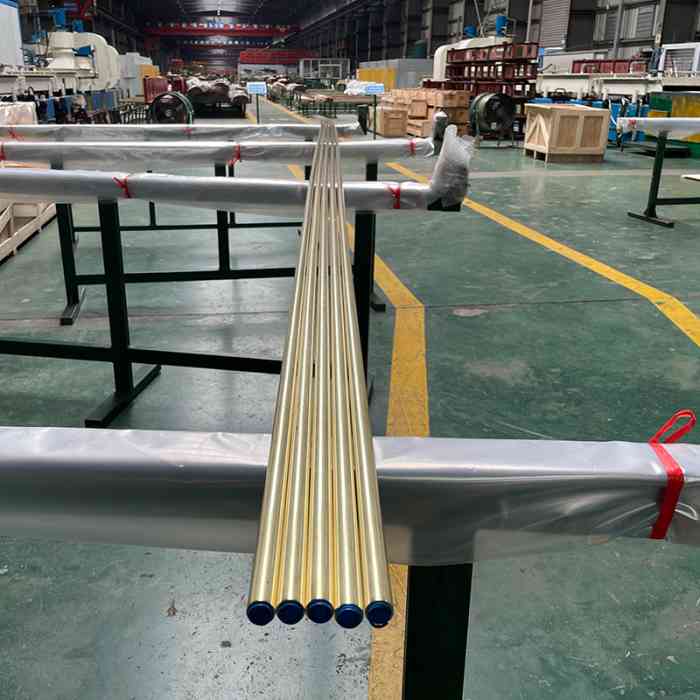

ASTM B135 C44300 ASME SB135 C44300 Admiralty Brass Condenser Tube High Heat Transfer for Refrigeration Plants
OEM/ODM Custom Pipe Fittings
According to customer requirements, the production of national standard, American standard, German standard, Japanese standard, non-standard high, medium and low pressure various specifications of carbon steel, stainless steel, alloy steel flange, elbow, Bend, reducing pipe, tee, four, head, pipe cap and thread, socket series pipe components products.
Lead Time:
| Quantity (pieces) | 1 – 100 | 101 – 1000 | > 1000 |
| Lead time (days) | 15 | 20 | To be negotiated |
Customized packaging(Min. order 10 pieces)
Graphic customization(Min. order 10 pieces
For actual requirements, please contact customer service.
Top Rated Products
-
High pressure boiler tube ASTM A213 ASME SA213 T5b seamless alloy steel pipe heat exchanger tube
Original price was: $19.90.$9.90Current price is: $9.90. -
Stainless Steel Tube Manufacturer ASTM 321- 0cr18ni11ti Cold Rolled Stainless Steel Pipe
Original price was: $19.90.$9.90Current price is: $9.90. -
Long and Short Carbon Steel Elbow Pipe Fitting 45 - 90- 180 LR-SR Elbows Or Stainless Steel 90 Degree Pipe Fitting Elbow
Original price was: $19.90.$9.90Current price is: $9.90.
On-Sale Products
-
Versatile Industrial Pipe Components Pack Plugs Screws Nuts STUD BOLT Spiral wound gasket Gate Valve
Original price was: $19.90.$9.90Current price is: $9.90. -
Stainless Steel & Carbon Steel Threaded fittings STUD BOLT Gaskets Gate Valve Industrial Pipe Accessories
Original price was: $19.90.$9.90Current price is: $9.90. -
Nickel Alloy Square Head Plug Industrial Pipe Accessory for Refinery High-Corrosion Pipes
Original price was: $19.90.$9.90Current price is: $9.90.
Description
ASME SB135 C44300/ASTM B135 C44300
Chemical Composition
| Grade | % | Cu | Pb | Fe | Zn | Sn | As | Remark |
|---|---|---|---|---|---|---|---|---|
| C44300 Admiralty metal | Min | 70 | 0.80 | 0.02 | O60-Annealed H58-light-drawn H80-hard-drawn | |||
| Max | 73 | 0.07 | 0.06 | Remainder | 1.20 | 0.06 |
Physical Properties
| Property | Density | Melting Point | State | Tensile strength | Yield strength | Elongation rate | Hardness | Recommended operating temperature |
|---|---|---|---|---|---|---|---|---|
| G/CM³ | °C | / | MPa | MPa | % | HV | °C | |
| 8.52 | ~938 | O60 | ≥310 | ≥105 | / | / | -200~200 | |
| H58 | ≥370 | / | / | / | ||||
| H80 | ≥455 | / | / | / |
Product Characteristics
1. Typical tin brass has high corrosion resistance in atmosphere, steam, oil and seawater.
2. Has good mechanical properties and acceptable processability.
3. Easy to solder and lead solder, with good pressure workability in cold and hot conditions and a tendency to resist corrosion and cracking.
Scope of Application
Corrosion resistant parts commonly used on seagoing vessels (such as condenser tubes), conduits in contact with seawater, steam, and oil, and parts of thermal equipment; Used for making heat exchangers and conduits in contact with corrosive liquids, particularly widely used in thermal power plants to make corrosion resistant parts of heat exchangers and condensers.
- Ultra-High Heat Exchange Efficiency: Adopting aerospace-grade precision tubing and a special inner wall texture design, the heat exchange area is increased by more than 35% compared with traditional condenser tubes. It can quickly realize energy exchange between cold and hot media, significantly shortening the process time, helping to increase equipment production capacity by 20%-40%, and providing solid support for enterprises to reduce costs and improve efficiency.
- Superior Corrosion Resistance and Durability: Selected corrosion-resistant materials such as 316L stainless steel and titanium alloy, and processed through multiple precision surface treatment processes. It can withstand complex working conditions such as strong acid, strong alkali, high temperature and high pressure, with a service life of 8-12 years, far exceeding the industry average. This reduces the frequency of equipment replacement and maintenance costs.
- Low-Resistance and Energy-Saving Design: The internal flow channel structure is optimized to reduce the flow resistance of the medium. Combined with the precise ratio of pipe diameter and wall thickness, it ensures the heat exchange effect while reducing the energy consumption of the power system. It can help enterprises save 15%-25% of energy expenses annually, conforming to the concept of green production.
- Flexible Adaptability: Customized production is supported. The pipe diameter, length and connection method can be adjusted according to different equipment models and medium characteristics (such as steam, cold water, organic solvents, etc.). It can be easily adapted to various heat exchange systems without large-scale equipment modification, enabling convenient and efficient installation.
- Chemical and Pharmaceutical Field: In chemical reaction kettles and pharmaceutical distillation towers, condenser tubes can quickly condense the steam generated by reactions, accurately control the reaction temperature, ensure the purification purity of chemical raw materials and the synthesis quality of pharmaceutical intermediates, meet strict industry quality standards, and guarantee production safety and product stability.
- Food and Beverage Industry: Used in processes such as juice concentration, beer brewing and dairy product sterilization, condenser tubes can gently realize steam condensation and material cooling, avoiding the damage of high temperature to food nutrients and flavor substances. At the same time, relying on the food-grade material properties, it prevents secondary pollution and safeguards food safety.
- Refrigeration and Air Conditioning Systems: As a core component of air conditioning units and cold storage refrigeration systems, condenser tubes can efficiently condense refrigerant vapor, quickly release heat, improve refrigeration efficiency, and ensure the stable temperature of indoor environments and storage spaces. It is suitable for scenarios such as commercial buildings, large shopping malls and cold chain logistics.
- Energy and Environmental Protection Field: In projects such as thermal power generation, waste heat recovery and sewage treatment, condenser tubes can realize steam condensation recovery and waste heat utilization of industrial wastewater, help recycle energy, reduce the discharge of wastewater and waste gas, and provide key equipment support for enterprises to achieve the “dual carbon” goal.
Adequate Stock
The company prepares more than 50,000 tons of special steel pipes all year round. Its material has SA106B, 20G, Q345, 12CR1MoVG, 15 CrMoG, 1Cr5Mo, 1Cr9Mo, 10CrMo910, A335P5/P9/P11/P12/P22/P91/P92, WB36 and all kinds of Austenitic stainless steel.
Application
Purpose of steel pipe:
1. Mechanical industry pipe. Such as aviation structure tube (round tube, oval tube, flat tube), automobile axle tube, axle tube, automobile tractor structure tube, tractor oil cooler tube, agricultural machinery with square tube and rectangular tube, transformer tube and bearing tube.
2. Pipe for petroleum geological drilling. Such as: oil drilling pipe, oil drill pipe (kelly and hexagonal drill pipe), drill, oil tubing, oil casing and various pipe joints, geological drilling pipe (core pipe, casing, active drill pipe, drill, press collar and pin joint, etc.)
3. Tubes for chemical industry. Such as: petroleum cracking pipe, chemical equipment heat exchanger and pipe pipe, rust resistant acid pipe, chemical fertilizer with high pressure pipe and transport medium pipe.
4. Pipes for pipes. Such as: water, gas pipe, steam pipe with seamless pipe, oil transmission pipe, oil and natural gas trunk pipe. Agricultural irrigation faucet with pipe and spray irrigation pipe
5. Pipe for thermal equipment. Such as the general boiler with boiling water pipe, superheated steam pipe, locomotive boiler with heat pipe, smoke pipe, small smoke pipe, arch brick pipe and high temperature and high pressure boiler tube 6. Tubes for other departments. Such as: container tube (high-pressure gas cylinder tube and general container tube), instrument tube, hand watch case with tube, syringe needle and medical instruments with tube, etc.
Package & Shipping
Package: Standard export package,wooden cases,wooden pallet,carton,etc
Loading Port: Tianjin port,Shanghai port,Qingdao port,Ningbo port, etc
MOQ: 1000KGS. for special size, the MOQ will be confirmed
Price Term: EX-WORK, FOB, CIF, CFR, CNF, DDP, etc
Delivery Time: ACCORDING TO THE ORDER”S QUANTITY.
FAQ
Q:How could I place a order?:
A:You can contact us by email about your order details,or place a order on line.
Q:Are the products in stock?
A:Yes.Most of our products are in stock.It can be prompt delivery.
Q:Could I customize?
A:Yes.It can be customized as per your request.
Q:Could you provide the samples?
A:No problems.Samples can be provided with samples charge and courier fee by the buyer’s side.
Q:What about the quality?
A:According to the standard for production.And we also accept the third-party inspection and quarantine.
